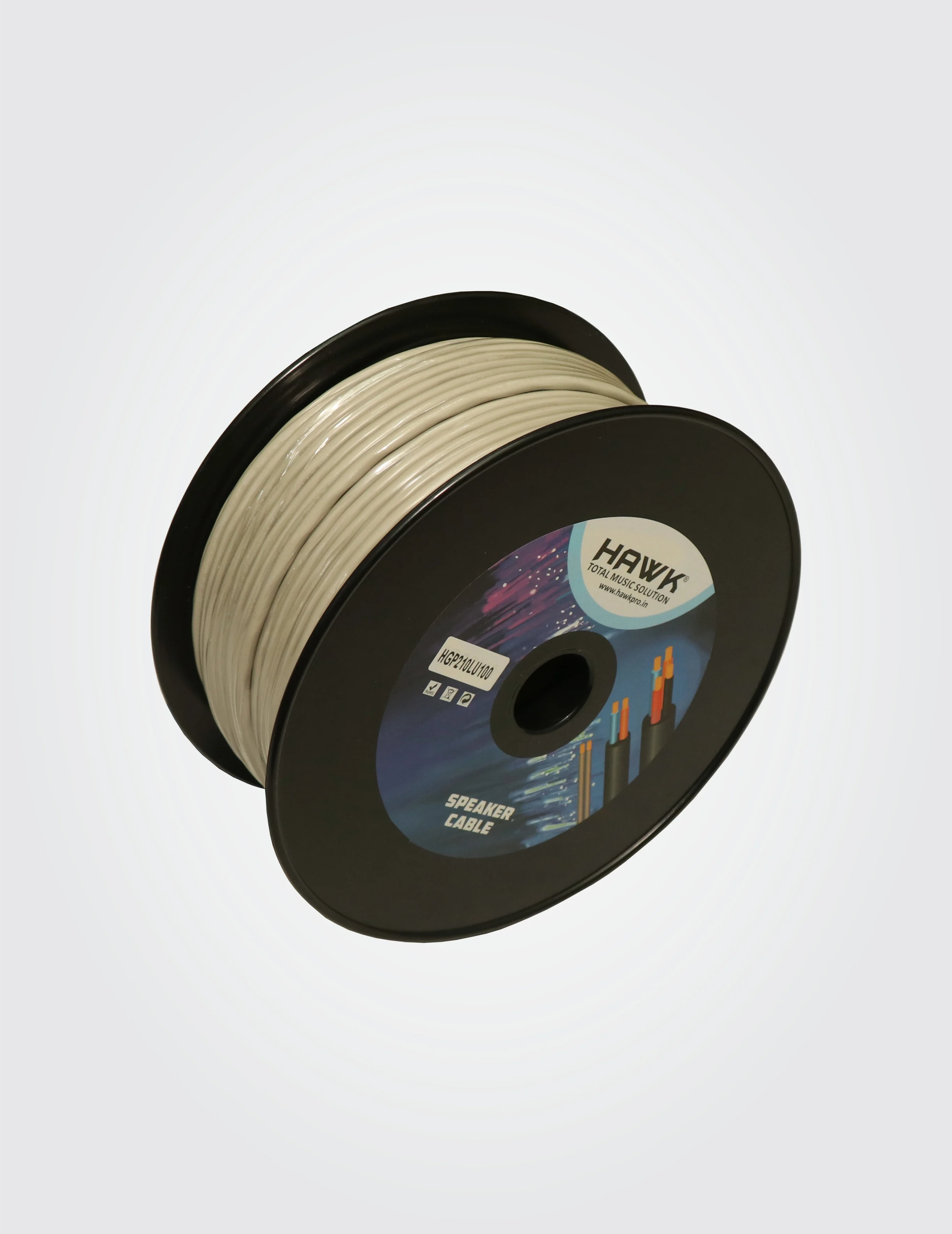

The HAWK HGP2075LU100 2-Core Installation Speaker Cable features 0.75 mm² OFC conductors, red and black insulation, and a durable grey PVC jacket for reliable speaker connections.
The HAWK HGP2075LU100 Installation Speaker Cable is designed for speaker wiring and compatible audio installations. It features two 0.75 mm² oxygen-free copper (OFC) conductors with red and black HDPE insulation. The durable grey PVC outer jacket provides protection during installation, making this cable suitable for fixed speaker wiring and other compatible audio applications.
Key Features
OFC Conductors: Features oxygen-free copper conductors for audio signal transmission.
2-Core Design: Includes two conductors for compatible speaker connections.
0.75 mm² Conductor Size: Specified with 18 AWG conductors.
Colour-Coded Insulation: Red and black insulation helps identify the conductors.
Durable PVC Jacket: Grey outer jacket designed for practical cable installation.
Installation Flexibility: Includes specified temperature ranges and bending radii for fixed and flexible installations.
Applications: Suitable for compatible loudspeakers, audio systems, and professional sound installations. Check the required conductor size and installation specifications before use.
| Brand | HAWK |
|---|---|
| Model Number | HGP2075LU100 |
| Product Name | 0.75 sq mm 2-Core Installation Speaker Cable |
| Cable Type | 2-Core Loudspeaker Cable |
| Number of Conductors | 2 |
| Conductor Material | Oxygen-Free Copper (OFC) |
| Conductor Construction | 24 × 0.20 mm |
| Conductor Size | 0.75 mm² |
| Wire Gauge | 18 AWG |
| Insulation Material | HDPE |
| Insulation Diameter | 2.0 mm |
| Insulation Colours | Red and Black |
| Outer Jacket Material | PVC |
| Outer Jacket Diameter | 4.5 mm |
| Outer Jacket Colour | Grey |
| Conductor Twisting | Lay Length ≤ 40 mm |
| Temperature Range (Fixed Installation) | -40°C to +80°C |
| Temperature Range (Flexible Installation) | -25°C to +70°C |
| Bending Radius (Fixed Installation) | 8 × Outer Diameter |
| Bending Radius (Flexible Installation) | 10 × Outer Diameter |
| Maximum DC Resistance | 23.8 Ω/km |
| Dielectric Strength | 2 kV DC for 1 minute |
| Applications | Speaker Wiring, Audio Systems, Fixed Installations |
It features two conductors with a cross-sectional area of 0.75 mm² each, specified as 18 AWG.
It uses OFC conductors, HDPE insulation, and a grey PVC outer jacket.
The red and black insulation helps distinguish the two conductors during installation and wiring.
