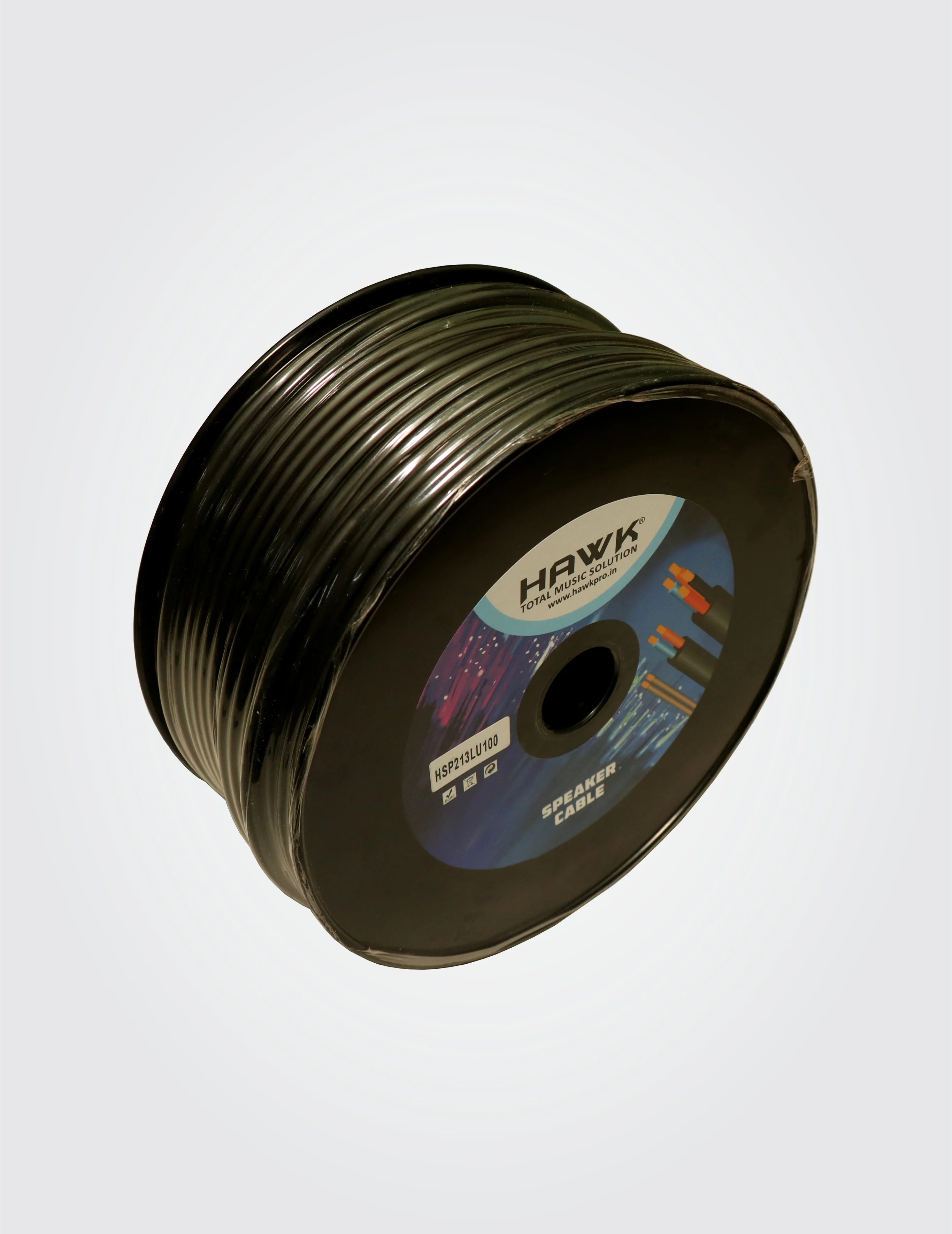

The HAWK HSP213LU100 2-Core Speaker Cable features 1.3 mm² OFC conductors, red and blue insulation, and a durable black PVC jacket for reliable speaker connections in audio installations.
The HAWK HSP213LU100 2-Core Speaker Cable is designed for speaker wiring in compatible audio systems and sound installations. It features two 1.3 mm² oxygen-free copper (OFC) conductors with red and blue HDPE insulation. The durable black PVC outer jacket provides protection during installation, making this cable suitable for fixed speaker wiring and other compatible audio applications.
Key Features
OFC Conductors: Designed for reliable audio signal transmission.
2-Core Construction: Features two conductors for compatible speaker connections.
1.3 mm² Conductor Size: Specified as 16 AWG.
Colour-Coded Insulation: Red and blue insulation helps identify the two conductors.
Durable PVC Jacket: Features a black outer jacket with a 6.5 mm diameter.
Installation Flexibility: Includes specified temperature ranges and bending radii for fixed and flexible installations.
Applications: Suitable for compatible loudspeakers, audio systems, and professional sound installations. Check the cable specifications and installation requirements before use.
| Brand | HAWK |
|---|---|
| Model Number | HSP213LU100 |
| Product Name | 1.30 sq mm 2-Core Speaker Cable |
| Cable Type | 2-Core Loudspeaker Cable |
| Number of Conductors | 2 |
| Conductor Material | Oxygen-Free Copper (OFC) |
| Conductor Construction | BC 42 × 0.20 mm |
| Conductor Size | 1.3 mm² |
| Wire Gauge | 16 AWG |
| Insulation Material | HDPE |
| Insulation Diameter | 2.6 mm |
| Insulation Colours | Red and Blue |
| Outer Jacket Material | Durable PVC |
| Outer Jacket Diameter | 6.5 mm |
| Outer Jacket Colour | Black |
| Separator | None |
| Temperature Range (Fixed Installation) | -40°C to +80°C |
| Temperature Range (Flexible Installation) | -25°C to +70°C |
| Bending Radius (Fixed Installation) | 8 × Outer Diameter |
| Bending Radius (Flexible Installation) | 10 × Outer Diameter |
| Maximum DC Resistance | 13.5 Ω/km |
| Dielectric Strength | 2 kV DC for 1 minute |
| Applications | Speaker Wiring, Audio Systems, Sound Installations |
It features two conductors, each with a cross-sectional area of 1.3 mm² and a specified wire gauge of 16 AWG.
It uses OFC conductors, HDPE insulation, and a durable black PVC outer jacket.
The red and blue insulation helps distinguish the two conductors during speaker cable installation and wiring.
