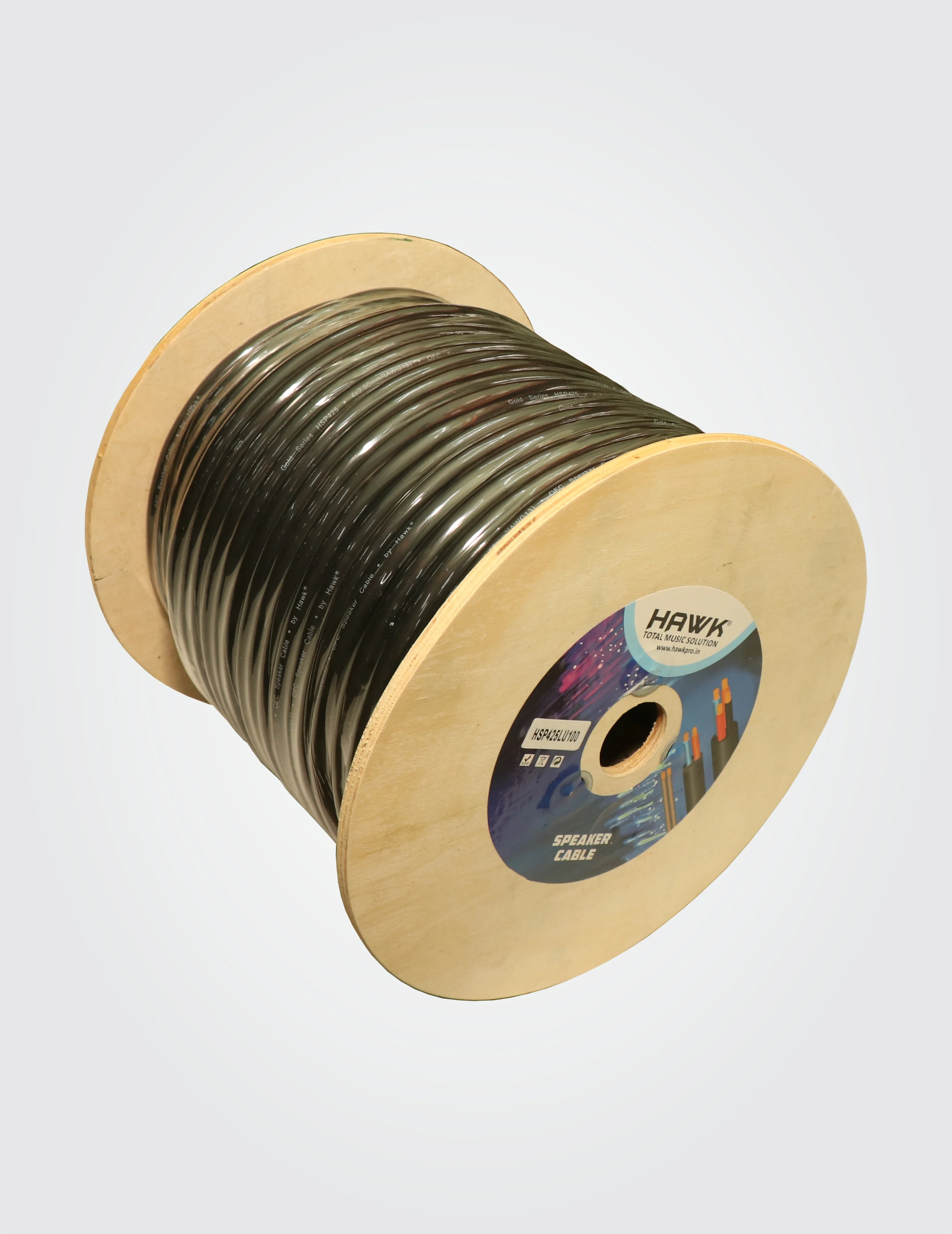

The HAWK HSP425LU100 4-Core Speaker Cable features 2.5 mm² OFC conductors, four colour-coded cores, and a durable black PVC jacket for reliable connections in compatible audio installations.
The HAWK HSP425LU100 4-Core Speaker Cable is designed for compatible audio systems and speaker installations requiring multiple conductors. It features four 2.5 mm² oxygen-free copper (OFC) conductors with red, blue, black, and white HDPE insulation. The durable black PVC outer jacket helps protect the cable during installation and keeps the four cores together for convenient routing.
Key Features
OFC Conductors: Designed for reliable audio signal transmission.
4-Core Construction: Suitable for compatible multi-conductor audio wiring.
2.5 mm² Conductor Size: Each core has a specified cross-sectional area of 2.5 mm².
Colour-Coded Cores: Red, blue, black, and white insulation supports easy conductor identification.
Durable PVC Jacket: Features a black outer jacket with a 12.0 mm diameter.
Installation Flexibility: Specified temperature ranges and bending radii support fixed and flexible installation planning.
100-Meter Roll: The model code indicates a 100-meter roll. Confirm the supplied length before ordering.
Applications: Suitable for compatible loudspeakers, audio systems, and professional sound installations. Check equipment requirements and wiring specifications before use.
| Brand | HAWK |
|---|---|
| Model Number | HSP425LU100 |
| Product Name | 2.50 sq mm 4-Core Speaker Cable |
| Cable Type | 4-Core Loudspeaker Cable |
| Number of Conductors | 4 |
| Conductor Material | Oxygen-Free Copper (OFC) |
| Conductor Construction | BC 80 × 0.20 mm |
| Conductor Size | 2.5 mm² per core |
| Wire Gauge | 13 AWG |
| Insulation Material | HDPE |
| Insulation Diameter | 3.2 mm |
| Core Colours | Red, Blue, Black, White |
| Outer Jacket Material | Durable PVC |
| Outer Jacket Diameter | 12.0 mm |
| Outer Jacket Colour | Black |
| Separator | None |
| Cable Length | 100 Meters* |
| Temperature Range (Fixed Installation) | -40°C to +80°C |
| Temperature Range (Flexible Installation) | -25°C to +70°C |
| Bending Radius (Fixed Installation) | 8 × Outer Diameter |
| Bending Radius (Flexible Installation) | 10 × Outer Diameter |
| Maximum DC Resistance | 7.1 Ω/km |
| Dielectric Strength | 2 kV DC for 1 minute |
| Applications | Speaker Wiring, Audio Systems, Sound Installations |
Each of its four conductors has a cross-sectional area of 2.5 mm² and a specified wire gauge of 13 AWG.
The cable features red, blue, black, and white insulated cores to help identify individual conductors.
It is designed for compatible speaker wiring, audio systems, and sound installations that require a 4-core cable.
